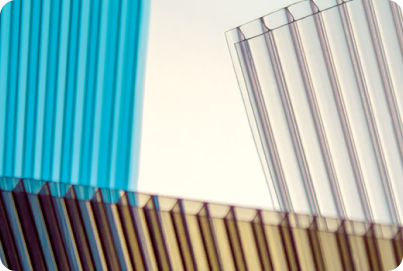

Multi-Wall Polycarbonate

US Plast’s multi-wall polycarbonate sheets are made of strong yet lightweight thermoplastic synthetic resin that provides a durable, translucent solution for applications where impact resistance and light transmission are key. These features plus its distinctive interior structure and light-transmitting properties make multi-wall polycarbonate perfect for unique architectural designs and glazing applications, as well as conventional construction uses. US Plast’s multi-wall polycarbonate sheets come with UV protection and a 10 year warranty.

Features:

12 colors in stock

5 structure options

UV protection

Cut to size

10 year warranty

Available to ship in 3 to 4 business days

Benefits:

Highly impact resistant

Energy efficient

High light transmission

Lightweight

Easy to install

Recyclable

Buyback Program

Applications:

Architecture

Construction

Roofing

Glazing

Greenhouses

Skylights

Our complete sample kit is only a click away!USplast only fulfills samples requests made by distributors. Please contact your local distributor for assistance.

Structure	Thickness (mm)	Thickness (inch)	Available Widths (inch)	Weight (lbs/sq ft)	Minimum radius for cold bending	U-Value	Light Transmission (%) Clear	Light Transmission (%) Opal	Light Transmission (%) Bronze
2-Wall	4	5/32	41.35, 48, 72, 82.7	0.16	28	0.68	82	32	42
2-Wall	6	1/4	41.35, 48, 72, 82.7	0.27	41	0.61	82	58	35
2-Wall	8	5/16	41.35, 48, 72, 82.7	0.31	55	0.58	80	54	35
2-Wall	10	3/8	41.35, 48, 72, 82.7	0.35	69	0.52	76	48	35
3-Wall	10	3/8	41.35, 48, 72, 82.7	0.35	80	0.48	75	–	–
3-Wall	16	5/8	41.35, 48, 72, 82.7	0.55	110	0.43	75	–	–
X-Structure	16	5/8	41.35, 48, 72, 82.7	0.55	117	0.43	60	–	–
X-Structure	20	25/32	41.3, 48, 72, 82.7	0.61	155	0.37	60	–	–
X-Structure	25	1	41.3, 48, 72, 82.7	0.72	173	0.33	60	–	–
X-Structure	32	1-1/4	41.3, 48, 72, 82.7	0.76	250	0.28	58	–	–
Honeycomb	10	3/8	41.3, 48, 72, 82.7	0.35	80	0.45	75	–	–
Honeycomb	12	1/2	41.3, 48, 72, 82.7	0.42	90	0.44	75	–	–
4-Wall	22	7/8	41.3, 48, 72, 82.7	0.67	160	0.35	60	–	–

Multi-Wall Accesories

Base & Cap Profile (HCP)

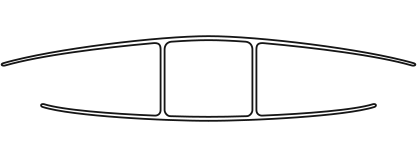

H Profile (HP)

Accessory	Function	Length/Width	For sheet sizes
HCP	Connects sheets	L: 8', 10', 12'	6mm (¼"), 8mm (5/16"), 10 mm (3/
HP	Connects sheets	L: 8', 10', 12'	4mm (5/32"), 6mm (¼"), 8mm (5/16
UP	Caps top and bottom of sheets to keep out dust, moisture, insects, etc.	W: 48"	4mm (5/32"), 6mm (¼"), 8mm (5/16
